The PC-3000 Flash is capable of automatically checking and downloading the latest libraries via the Internet:
Memory chip library
ECC algorithm library
XOR library
Library of Analysis algorithms, preparation and research methods
Page format library
Supply circuit library
Rereading Modes reference book
Dynamic XOR library
If there are any new resources, they are downloaded from the ACE Laboratory server and updated.
In addition to a great variety of manual and visual modes, the PC-3000 Flash has automatic data recovery methods which help solve both simple and difficult cases. For example, in most cases, Complex analysis allows for making all prior operations automaticaly and get access to user data.
With the PC-3000 Flash, you can recover data with "one-click" using the PC-3000 Flash Global Solution Centre . It is a dream come true for data recovery specialists!
The Global Solution Centre is updated daily!
The list of controllers supported by "Global Solution Centre" can be reviewed here

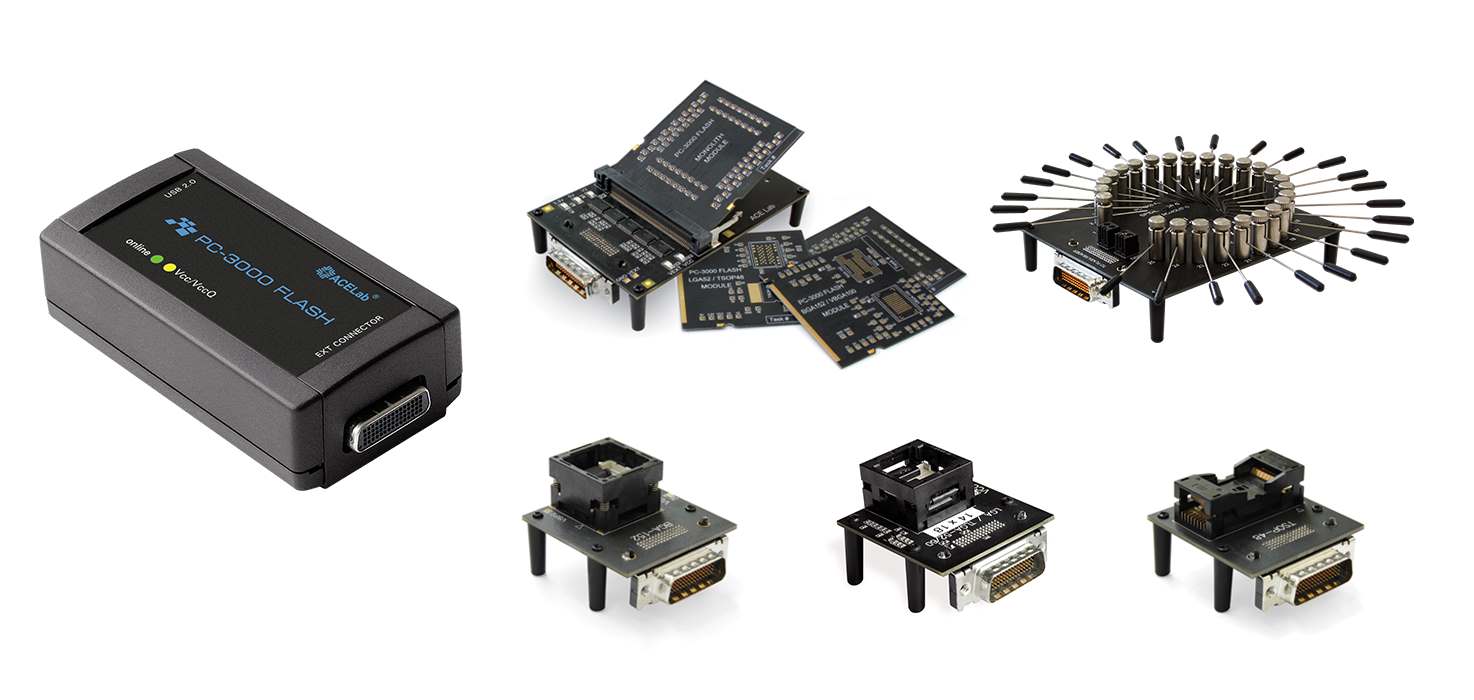

THE PC-3000 Flash Kit
PC Flash Reader - 1pcs
TSOP-48 Adapter – 1 pc.
LGA/TLGA-52 adapter (14x18) - 1pcs.
BGA-152 adapter - 1 pcs.
Circuit Board adapter - 1 pcs.
USB 2.0 Defender Cable - 1 pcs.
PC-3000 Flash Software - 1 DVD
User Manual - 1 pcs.
Interface to connect Flash-Reader: USB 2.0
Supported types of memory chip covers:
TSOP-48 N/W (is integrated into PC Flash Reader)
LGA/TLGA-52 [14x18] (is included into the PC-3000 Flash Kit)
BGA-152/132 (is included into the PC-3000 Flash Kit)
Circuit Board (is included into the PC-3000 Flash Kit)
TSOP-48 (is included into the PC-3000 Flash Kit)
LGA/TLGA-52 [12x17] (can be purchased separately)
TSSOP-56 (can be purchased separately)
Memory chip reading speed: 5-15 МB/S. Determined by parameters of reading process and microchip architecture
Indicators:
active state and status of the reader
power supply on the circuit Vcc
power supply on the circuit VccQ
Integrated Power Control Adapter parameters:
the number of independent circuits: 2 (Vcc, VccQ);
voltage range: 0.8 V - 3.6 V;
voltage step: 0.05 V;
source types: impulse or line - (can be selected by software);
Limitation of current consumption: 150 mA, 200mA, 500mA, 1.5A, Unlimited;
delays in buffer elements: 3 ns;
Supported types of controllers and memory chips:
Supported types of controller chips
Supported types of memory chips
Supported OS: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10; х86, х64
Data Recovery Expert Service have for our partners new adapters for differen flash chips Like :
LGA 52, LGA 52 WIDE, LGA 64 , BGA 100, BGA 132, BGA 152,
eMMC adapter ( now we have 5 different version for smartphone )

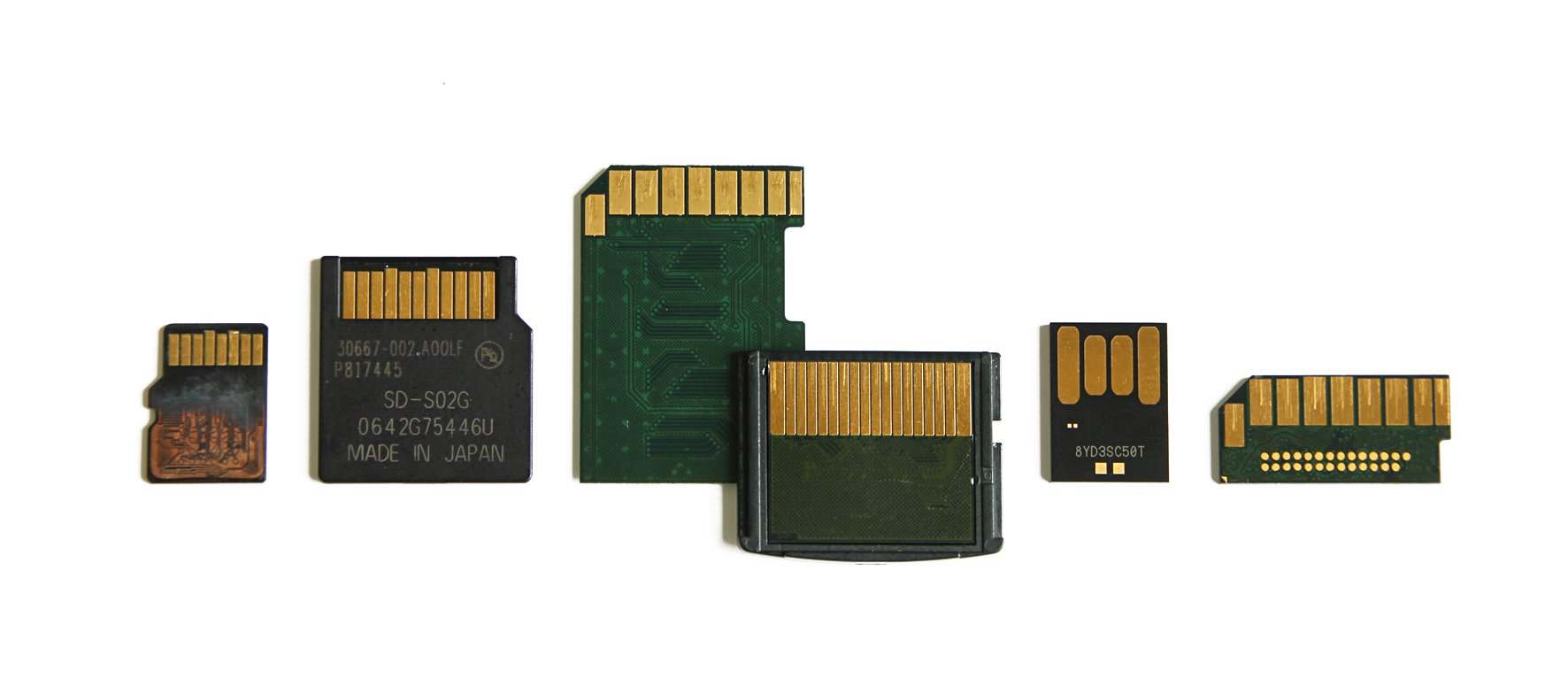

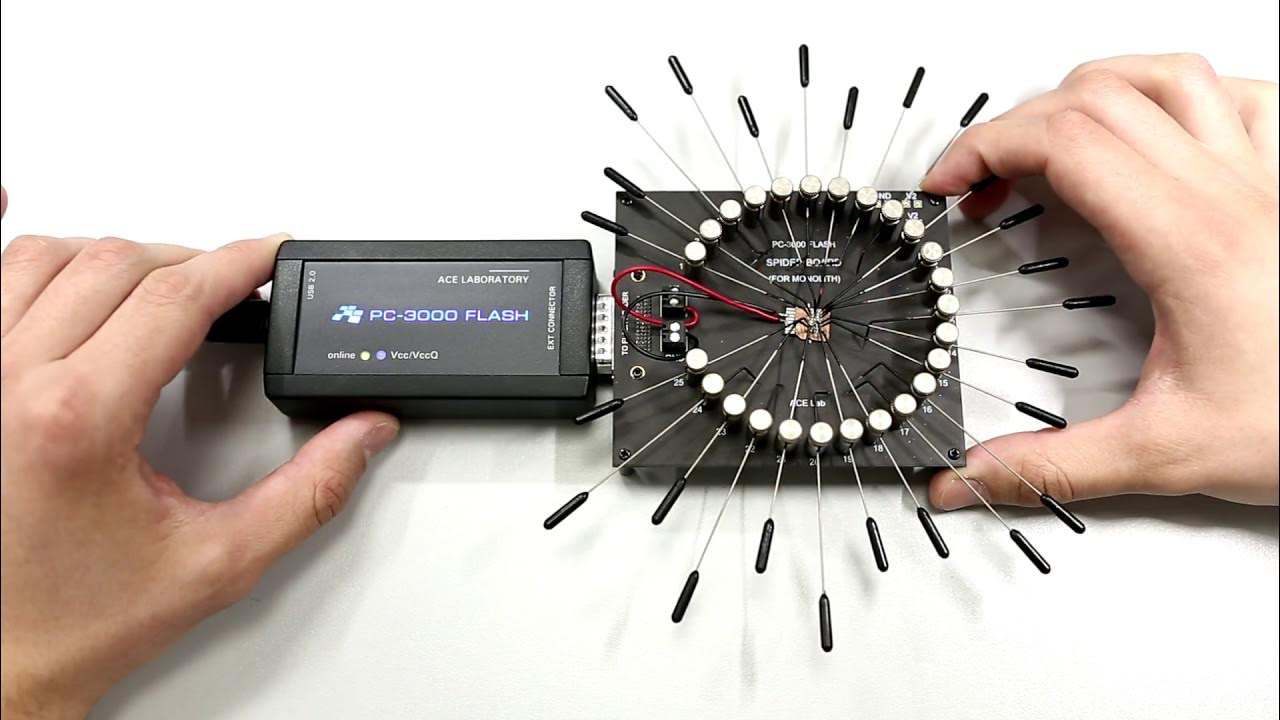

Monolithic research board ASELAB VERSION , Monolithic Needle Adapter EXPERT VERION
And custom BGA adapter !
